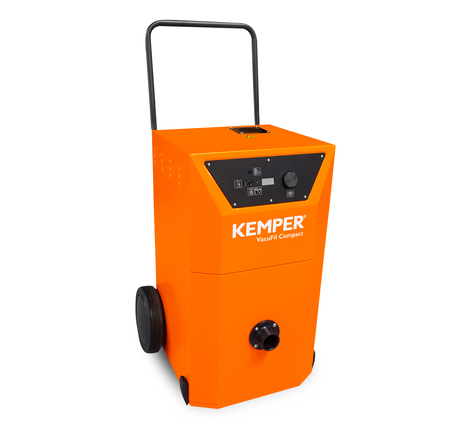

Description

Applications of the VacuFil Compact

The VacuFil Compact is designed for versatile use across different welding environments. It can be applied in torch extraction and at alternating workplaces. Its compact design makes it especially useful for light-to-medium welding shops, fabrication facilities, and repair workshops, where space is limited but reliable air quality control is critical.

The VacuFil Compact is also well-suited for maintenance and repair operations (MROs) and educational training centers that need a dependable unit for student safety.

In addition, independent contractors and small manufacturers benefit from its portability, straightforward controls, and effective fume removal for smaller, more mobile welding projects.

Key Benefits of the VacuFil Compact Vacuum

The VacuFil Compact delivers several benefits to businesses and independent contractors including:

• Adjustable Power: Allows operators to fine-tune extraction strength for different welding torches and applications.
• Easy Operation: One-button control makes the unit simple to use, even while wearing gloves.
• Strong Performance: Delivers reliable, high-capacity fume extraction through its durable side channel blower.

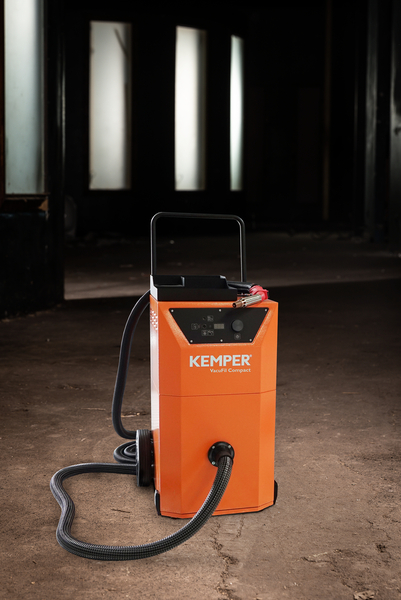

• Portable Design: Compact build makes it easy to move between different workstations or job sites.
• Low Maintenance: Reduces maintenance downtime thanks to the large-capacity disposable filter system.

Technical Data

Filter Details

Filter Stage	1
Filter Method	Storage Filter
Filter Surface	72.12 sq ft (6.7 m²)
Type of Filter	Filter Cartridge
Filter Material	PE-M Membrane
Filter Efficiency	> 99.9%
Dust Classification	M

Basic Product Data

Max. Extraction Capacity	94.17 CFM (160 m³/h)
Extraction Performance	29.43 CFM @ 72.3 inH₂O (18000 Pa) / 50 m³/h
Maximum Vacuum	96.39 inH₂O (3.48 PSI) (24000 Pa)
Dimensions (W x T x H)	23″ x 25″ x 47″ (589 x 625 x 1191 mm)
Weight	132.28 lbs (60 kg)
Motor Power	2.01 HP (1.5 kW)
Power Supply	3ph 460-480V (USA) / 3ph 575-600V (Canada) / 60 Hz
Rated Current	13 A

Additional Features

IFA Certification	W3-Approved
Fan Type	Side Channel Blower
Hose Connection	1.77″ / 2.48″ (Ø45 mm / Ø63 mm)
Air Outlet	2.48″ (63 mm)

Why Choose the KEMPER VacuFil Compact Welding Fume System

The VacuFil Compact offers a simple, user-friendly solution for welding fume extraction.

By reducing worker exposure to harmful fumes, it safeguards employee health, helping to improve productivity and reduce long-term liability.

Its compact design allows easy integration into existing welding stations without requiring major retrofits, while its portability makes it suitable for companies that manage multiple job sites or have dynamic shop floor setups.

VacuFil Compact Spec Sheets

Download the official VacuFil Compact spec sheets for detailed technical data:

• Overview VacuFil Compact
• Operating Instructions

Available Product Accessories

• Automatic Start-Stop
• Automatic Air Volume Control
• Tool Tray with Cup Holder
• Suction Hose
• Slot and Funnel Nozzle
• Connector for Welding Torches
