Description
Applications of the SmartMaster Extraction Filter Unit

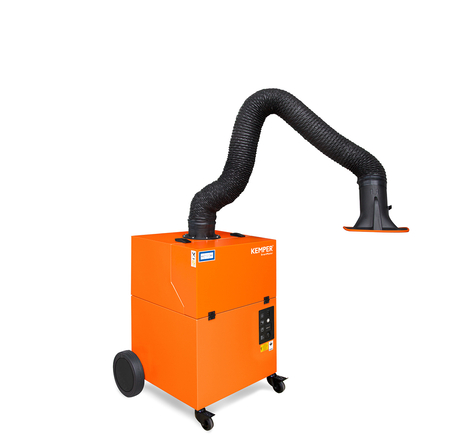

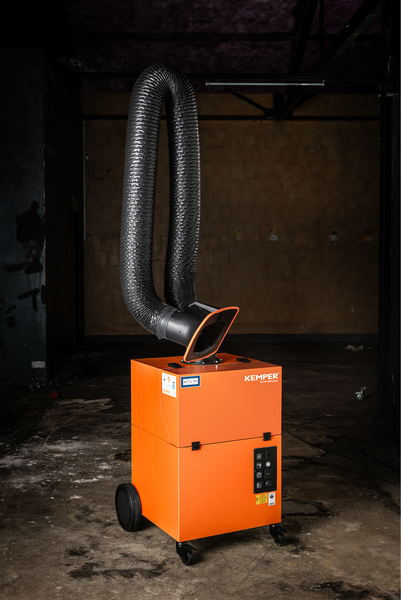

The SmartMaster is designed for light-duty welding tasks and provides reliable fume extraction in environments where dust and smoke levels remain low. It is suitable for all welding materials, including high-alloy steel, due to its W3 certification. This makes it a trusted choice for fabrication shops, repair facilities, trade schools, and training environments, where welders need consistent but not continuous use.
Key Benefits of the SmartMaster Extraction Device
The SmartMaster offers a range of practical advantages designed to improve workplace safety, efficiency, and ease of use for both professionals and independent welders.
- Flow-Optimized Hood for Efficiency: The ergonomically designed exhaust hood requires fewer adjustments, allowing welders to focus on their work instead of repositioning equipment.
- Certified Workplace Safety: Built-in filter monitoring increases safety by notifying users when the filter requires replacement, helping ensure compliance.
- Flexible Setup: A durable hose connection makes it easy to position the extraction arm for different welding stations, increasing flexibility in tight or changing workspaces.
- Compact & Portable: Its lightweight, mobile design makes it ideal for shops that need to move the extractor between stations or store it when not in use.
Technical Data
Filter Details
| Filter Stage | 3 |
| Filter Method | Storage Filter |
| Filter Surface | 140 sq. ft. (13 m²) |
| Type of Filter | Filter Cassette |
| Filter Material | Non-woven Fibre |
| Filter Efficiency | > 99.5% |
| Filter Class | E12 |
| Additional Filters | Two Pre-filters |
Basic Product Data
| Extraction Capacity | 560 CFM (950 m³/h) |
| Dimensions (W x D x H) | 28.4 x 29.6 x 35.8 in (722 x 753 x 909 mm) |
| Weight | 156.5 lbs (71 kg) |
| Motor Power | 1.5 HP (1.1 kW) |
| Power Supply | 1ph x 230 V (USA)-(Canada) / 60 Hz |
| Rated Current | 6.7 A |
| Control Voltage | 230 V, AC |
| Noise Level | 72 dB(A) |
Additional Features
| IFA-Certification | W3-Approved |
| Fan Type | Radial Fan |
| Quantity of Extraction Arms | 1 |
| Exhaust Arm Type | Flexible Exhaust Arm |
| Diameter of Extraction Arm | 6 in (150 mm) |
| Length of Extraction Arm | 6.5 ft (2 m) |
Why Choose the KEMPER SmartMaster Extraction System
The SmartMaster offers a cost-effective entry point into welding fume extraction without compromising on performance or compliance.
It reduces exposure to hazardous fumes, helping prevent long-term respiratory risks and improving overall workplace safety.
Backed by trusted W3 certification, the SmartMaster ensures reliability and offers peace of mind for users seeking a portable yet powerful solution.
SmartMaster Spec Sheets
Please review our detailed product spec sheets for more information:
- Datasheet
- Overview SmartMaster
- Operating Instructions
- Operating Instructions NO-SV-FI
Available Product Accessories
- Aluminum Pre-Filter
- Protective Mesh
