Description

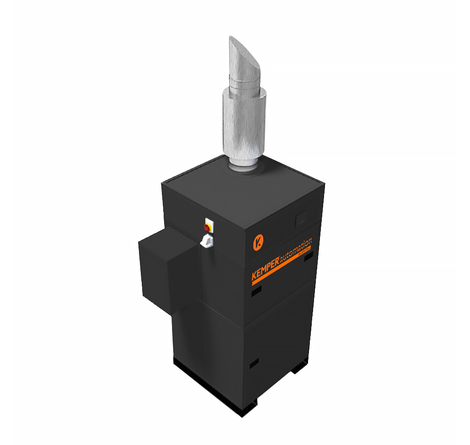

Applications of the ArcFil Pro Fume Extraction System
The ArcFil Pro is engineered for demanding industrial environments that generate significant smoke, dust, and airborne contaminants. Whether you operate a welding or grinding shop, a training facility, or a fully automated robotic welding line, the ArcFil Pro delivers consistent, high-performance filtration. It excels in laser, plasma, and flame cutting applications, providing dependable extraction even under heavy workloads. With its rugged construction and weather-resistant components, the system can be installed outdoors or in harsh production conditions without compromising performance.
Key Benefits of the ArcFil Pro Welding Filtration System
The ArcFil Pro Filter System offers a comprehensive suite of benefits including:
- Contamination-Free Dust Collection: Compressed air fixation of dust collection containers ensures that even the finest particulates are securely captured, preventing contamination in the production area.
- Continuous Operation: Automatic differential pressure-controlled filter cleaning allows uninterrupted use, reducing downtime and maintaining consistent extraction performance.
- Energy Efficiency: Automatic extraction volume control adapts airflow to the process, significantly reducing energy consumption and operational costs.
- User-Friendly: Intelligent touch-screen control with diagnostic system enables easy monitoring, maintenance alerts, and process customization.
- Enhanced Employee Health Protection: KemTex® ePTFE filter cartridges with advanced surface filtration provide superior removal of hazardous particles, protecting workers from exposure to toxic fumes and dust.
- Safe Air Recirculation: W3 certification ensures that filtered air, even from welding chrome-nickel steel, can be safely recirculated into the production hall, further optimizing energy use.
Technical Data
Filter Details
| Filter stages | 1 |
| Filter method | Cleanable filter |
| Filter cleaning method | Rotating nozzle |
| Filter surface | 107.6 ft² (10 m²) |
| Number filter elements | 3 |
| Filter surface total | 323 ft² (30 m²) |
| Type of filter | Filter cartridge |
| Filter material | KemTex® ePTFE membrane |
| Filter efficiency | > 99.99 % |
| Dust classification | M |
Basic Product Data
| Max. fan performance | 1,765 CFM (3000 m³/h) |
| Extraction capacity | 735 – 1,271 CFM (1250 – 2160 m³/h) |
| Air flow rate (max.) | 1,471 CFM (2500 m³/h) |
| Vacuum min. | 1950 Pa |
| Vacuum | 1950 – 2650 Pa |
| Working pressure in PA | 2650 Pa |
| Dimensions (w x t x h) | 37.9 x 37.9 x 83.1 in (962 x 962 x 2110 mm) |
| Weight | 904 lbs (410 kg) |
| Motor power | 4.0 hp (3 kW) |
| Power supply | 3ph 460-480v (USA) 3ph 575-600v (Canada)/60Hz |
| Rated current | 6.5 A |
| Noise level | 65 dB(A) |
Additional Features
| IFA-Certification | W3-Approved |
| Fan type | Impeller, direct driven |
| Compressed air supply | 72.5 – 87 psi (5 – 6 bar) |
| Air outlet | 9.8 in (250 mm) |
| Air intake | 250 mm |
| Capacity Dust collection container | 34 l |
Dimensions
| I | 27.8 in (706 mm) |
| J | 6.9 in (175 mm) |
| K | 9.8 in (250 mm) |
| L | 26.3 in (669 mm) |
| N | 26.3 in (293 mm) |
| O | 35.3 in (896 mm) |
| P | 14.0 in (355 mm) |
Why Choose the KEMPER ArcFil Pro
We designed the ArcFil Pro system to deliver unmatched performance, reliability, and safety for modern industrial environments. Our technology is built to excel in demanding applications, providing powerful extraction, intelligent automation, and long-term durability that our customers can rely on. Whether you operate a small workshop or a high-volume manufacturing facility, KEMPER provides the performance, support, and peace of mind needed to keep your production environment clean, compliant, and efficient. Contact us today!
Spec Sheets
Access our product spec sheets ensure the ArcFil Pro meets your operational needs:
- Datasheet
- Energy and cost savings through automatic extraction capacity control
- Operating Instructions
- Operating Instructions
Available Product Accessories:
- Dosing unit for pre-coating the filter cartridges
- Automatic extraction volume control
- Fleet management, remote maintenance and pre-noise maintenance using autarkic networking via mobile radio to the KEMPER cloud
- Spark separator – SparkTrap
- Automatic start-stop
- Weatherproof housing for outdoor installation
