Description

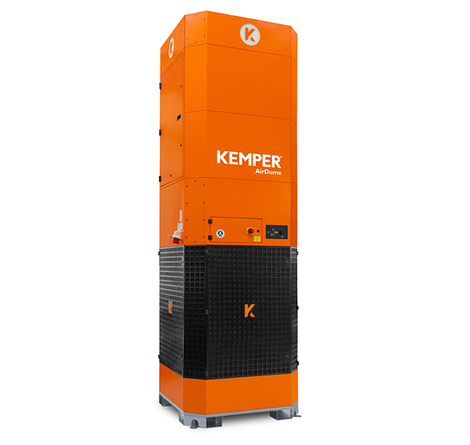

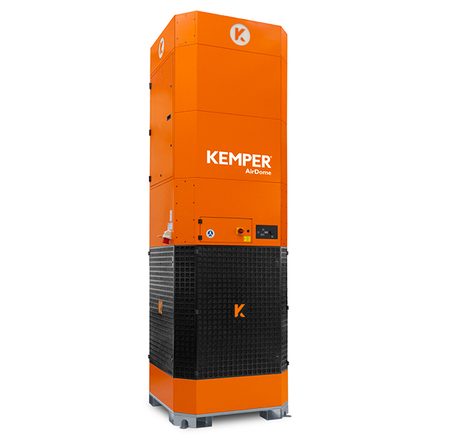

Applications of the AirDome Smoke Extraction System
The AirDome is designed to perform where traditional local exhaust ventilation cannot reach or is insufficient. It is highly effective in workshops, production halls, logistic and distribution centres, where welders frequently change stations or where multiple fume sources occur simultaneously. The unit can also complement existing local exhaust ventilation (LEV) systems by providing general hall ventilation that maintains consistent air quality. This versatility makes it a smart choice for industries such as metal fabrication, automotive repair, aerospace, and shipbuilding, as well as educational institutions with welding training programs.
Key Benefits of the AirDome Hall Ventilation Unit
The AirDome delivers a unique combination of safety, efficiency, and cost savings. Below are the key benefits that set it apart from traditional hall ventilation systems:
Energy Efficiency: State-of-the-art EC technology adapts to demand, reducing energy consumption, lowering operating costs, and minimizing environmental impact.
Optimal Capture Height: Extraction occurs exactly where welding fumes accumulate, ensuring worker protection and cleaner air.
Compact Design: A space-saving footprint of only 1.5 m² delivers an extreme 20,000 m³/h extraction capacity.
Easy Monitoring: Optional large, illuminated display allows for simple status checks at a glance.
Low Maintenance: Maintenance-free fans and large access doors make servicing quick and cost-effective.
High Performance: Consistent high-volume flow ensures stable clean air levels even in demanding applications.
Safe and Reliable: Designed to minimize risks from foreign objects while ensuring contamination-free dust disposal.
Simple Installation: Lifting eyes and forklift pockets make transport and setup safe and efficient.
Cost-Effective: No ductwork is required, making it cost-effective to retrofit or expand as facility needs grow.
Continuous Operation: Automatic dust disposal into a collection bin ensures uninterrupted use.
Technical Data
| Filter Stages | 1 |
| Filter Method | Cleanable Filter |
| Filter Cleaning Method | Rotating Nozzle |
| Filter Surface | 323 sq.ft. (30 m²) |
| Number of Filter Elements | 6 |
| Filter Surface Total | 1,938 sq.ft. (180 m²) |
| Filter Material | KemTex® ePTFE Membrane |
| Filter Efficiency | > 99,9 % |
| Dust Classification | M |
Basic Product Data
| Max. Fan Performance | 16,480 CFM (28000 m³/h) |
| Extraction Capacity | 4,700 – 11,770 CFM (8000 – 20000 m³)/h |
| Dimensions (W x T x H) | 49.2″ x 49.2″ x 159″ (1250 x 1250 x 4038 mm) |
| Weight | 1,929 lbs. (875 kg) |
| Motor Power | 20.7 HP (15,4 kW) |
| Power Supply | 3ph 460-480v (USA) 3ph 575-600v (Canada) / 60 Hz |
| Rated Current | 23.5 A |
| Control Voltage | 24 V, DC |
| Noise Level | 72 dB(A) |
Additional Features
| Fan Type | Radial Fan, Direct Driven |
| Compressed Air Supply | 5 – 6 bar |
| Capacity Dust Collection Container | 30 l |
Why Choose the KEMPER AirDome Ventilation System
Choosing the AirDome means investing in a ventilation system that not only captures hazardous welding fumes but also ensures compliance with strict workplace safety standards. By targeting fumes at the point where they rise and using displacement ventilation recommended by safety authorities, the system significantly reduces risks to workers’ health. Beyond safety, the AirDome delivers long-term cost savings and flexibility. It can be installed in new facilities, retrofitted into existing workshops, or relocated as operations expand. This adaptability makes it equally valuable for large production floors and smaller workshops needing a compact yet powerful solution.
AirDome Spec Sheets
Explore the complete technical details by downloading the AirDome specification shee
