Description

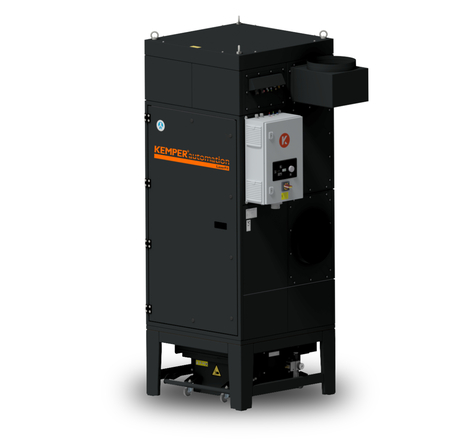

Applications of the LaserFil Extraction System

The LaserFil is ideal for work environments that produce medium levels of smoke, dust and particulate during laser-based processing. It is specifically optimized for laser cutting operations, particularly fiber lasers, CO₂ lasers and automated laser production cells where fine dust must be removed continuously to protect equipment, operators and indoor air quality.

Key Benefits of Our Laser Cutting Filter System

LaserFil is built for long-term reliability and provides a few important benefits including:

• Contamination-Free Dust Collection: A secure lever-fixing mechanism ensures the dust collection container can be removed without releasing particulate into the environment. This protects operators and nearby machinery.
• Energy Cost Savings: The system adjusts extraction performance based on real-time demand, which lowers power consumption when full airflow is not required. Facilities benefit from reduced operating costs, especially during multi-shift or high-volume production cycles.
• Uninterrupted Continuous Operation: An automated, demand-oriented filter cleaning system maintains consistent airflow, reduces manual maintenance and ensures continuous uptime even in intensive cutting environments.



Technical Data

Filter Details

Filter method	Cleanable filter
Filter cleaning method	Rotating nozzle
Filter surface	162 sq ft (15 m²)
Number filter elements	4
Filter surface total	646 sq ft (60 m²)
Type of filter	Filter cartridge
Filter material	PE-M membrane
Filter efficiency	> 99.9 %
Dust classification	M



Basic Product Data

Max. fan performance	3,237 CFM (5500 m³/h)
Extraction capacity	1,618 – 2,295 CFM (2750 – 3900 m³/h)
Vacuum	10.0 – 6.2 in WG (2500 – 1550 Pa)
Dimensions (w x t x h)	38 x 38 x 104 in (962 x 962 x 2650 mm)
Weight	1,232.4 lbs (559 kg)
Motor power	4 kW
Power supply	3ph 460-480v (USA) 3ph 575-600v (Canada)/60Hz
Rated current	7,45 A
Noise level	72 dB(A)



Additional Features

Fan type	Impeller, direct driven
Compressed air supply	72.5 – 87 PSI (5 – 6 bar)
Air outlet	14 in (355 mm)
Air intake	14 in (355 mm)
Capacity Dust collection container	70 l



Why Choose the KEMPER LaserFil

For more than 40 years, we have led the industry in welding and laser fume extraction. Our technology is built on proven engineering, long-term durability and a deep understanding of the challenges our customers face every day. LaserFil reflects this commitment. It delivers powerful filtration performance, reduced maintenance demands and a true plug-and-play setup that supports fast integration into any workflow. From small fabrication shops to large production facilities, LaserFil provides dependable air quality control.

Spec Sheets

Download our LaserFil product spec sheets to learn more about this extraction system:

• Datasheet
• Energy and cost savings through automatic extraction capacity control 
• Operating Instructions
• Operating Instructions NO-SV-FI 

Available Product Accessories:

• Automatic start/stop using contact
• Automatic suction power regulation
• Spark separator – SparkTrap
