Description

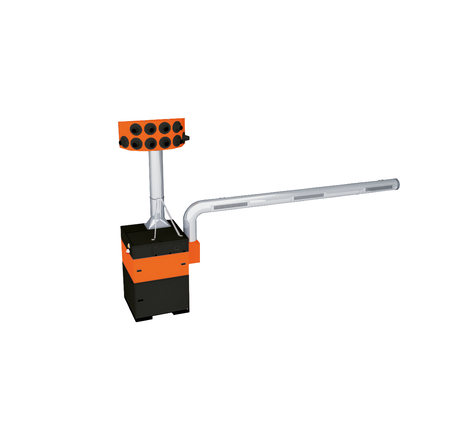

Applications of the KemJET
The KemJET system is particularly effective in workshops where local exhaust ventilation is not possible, such as those handling oversized or complex workpieces. In many facilities, it is also used to complement existing LEV systems, providing an additional layer of air purification and ensuring more complete coverage. The KemJET is ideal for environments with frequently changing smoke and dust sources, such as welding bays where operators rotate between different tasks or projects. Its flexible design also makes it well-suited to workstations spread across large floor areas.
Key Benefits of the KemJET Ventilation System
The KemJET delivers multiple advantages for employers, facility managers, and workers:
- Targeted Air Distribution: The KemJET features high-performance nozzles that can be adjusted by 30 degrees, ensuring air is distributed exactly where it is needed in the plant or workshop.
- Safe Dust Collection: Its dust containers are secured with compressed air fixation, preventing contamination and accidental spillage when removing collected dust.
- Continuous Operation: The system includes automatic filter cleaning controlled by differential pressure sensors, allowing uninterrupted performance without manual intervention.
- Quiet Performance: With its low noise level, KemJET minimizes workplace disruption.
- Energy-Efficient Air Recirculation: By keeping heated or cooled air inside the facility, the system significantly reduces HVAC costs.
- Simple Setup: KemJET can be deployed with minimal disruption to operations.
- Smart & Convenient Control: An intuitive touch screen interface with integrated diagnostics allows operators to monitor system performance, identify issues quickly, and streamline maintenance.
Technical Data
Filter Details
| Filter Surface Total | 645.8 sq ft (60 m²) |
Basic Product Data
| Extraction Capacity | 3,531.5 CFM (6000 m³/h) |
| Height | Variable |
| Measurements Filter Unit | 56″ x 56″ x 83″ (1.413 x 1.413 x 2.110 mm) |
| Measurements Blow-Out Unit | 66″ x 29″ x 30″ (1.670 x 730 x 760 mm) |
| Gross Weight Extraction Unit | 1,388.9 lbs (630 kg) |
| Total Weight | 1,984.2 lbs (900 kg) |
| Motor Power | 5.36 HP (4 kW) |
| Power Supply | 3ph 460-480v (USA) 3ph 575-600v (Canada) / 60 Hz |
| Rated Current | 7.8 A |
| Noise Level | 65 dB(A) |
Additional Features
| Fan Type | Radial Fan, Belt Driven |
| Nozzles | 10 x 7.87 inches (200 mm) |
| Length of Extraction Duct | 236 inches (6000 mm) |
| Wall Mounting (Set) | 99 8103 465 |
| Supports (Set) | 99 8103 468 |
| Air Nozzles, Range | Approx. 98.4 ft (Approx. 30 m) |
