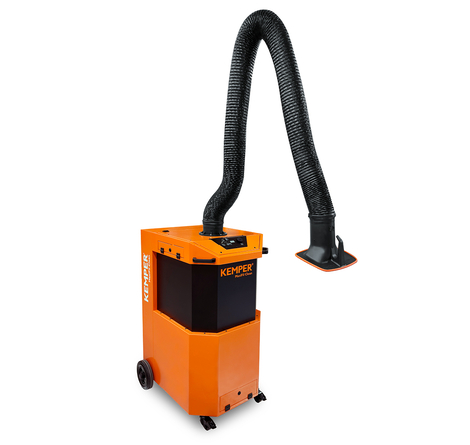

Description
Applications of the MaxiFil Clean Welding Smoke Filter Unit
The MaxiFil Clean is engineered for versatility, making it suitable for virtually all welding environments. It can handle applications involving stainless steel, aluminum, and high-alloy steels while effectively capturing high levels of smoke and fine particulate matter. Thanks to its design for non-stop operation, it performs reliably in shift-based industrial environments and is equally practical for smaller fabrication shops or mobile welding projects.
Key Benefits of the MaxiFil Clean Mobile Filter Unit
Advantages of using the MaxiFil Clean include, but are not limited to:
- Reliable Operation: Safe and dependable performance with rotation field control.
- Efficient Hood Design: Minimal adjustment required thanks to the flow-optimized exhaust hood.
- Filter Monitoring: Continuous safety checks through integrated performance sensors.
- Health Protection: Advanced worker safety with KemTex® ePTFE filter cartridges that capture ultrafine particles <0.1 µm.
- Cost Savings: Long-lasting, high-capacity filters reduce replacement frequency and operating costs.
- Easy Operation: User-friendly, ergonomic one-button startup for quick use.
- Clean Disposal: Contamination-free removal of welding fumes via sealed disposable bags.
- Fire Safety: Built-in spark pre-separator with durable aluminum mesh.
- Mobile Design: Compact unit with swivel casters for effortless movement across job sites.
Technical Data
Filter Details
| Filter Method | Cleanable Filter |
| Filter Cleaning Method | Rotating Nozzle |
| Filter Surface | 161 Square Feet (15 m²) |
| Type of Filter | Filter Cartridge |
| Filter Material | ePTFE Membrane |
| Filter Efficiency | > 99.9 % |
| Dust Classification | M |
| Additional Filters | Spark Pre-Separator Made of Aluminium Mesh |
Basic Product Data
| Extraction Capacity | 853 CFM (1450 m³/h) |
| Dimensions (w x d x h) | 33″ x 38″ x 53″ (834 x 973 x 1350 mm) |
| Weight | 434 lbs (197 kg) |
| Motor Power | 2.95 HP (2.2 kW) |
| Power Supply | 3ph 460-480v (USA) 3ph 575-600v (Canada) / 60 Hz |
| Rated Current | 4.4 A |
| Control Voltage | 24 V, DC |
| Noise Level | 73 dB(A) |
Additional Features
| Fan Type | Radial Fan |
| Compressed Air Supply | 72.5 – 87 PSI (5 – 6 bar) |
| Quantity of Extraction Arms | 1 |
| Exhaust Arm Type | Flexible Exhaust Arm |
| Diameter of Extraction Arm | 6 inches (150 mm) |
| Length of Exhaust Arm | 6.5 feet (2 m) |
Why Choose the KEMPER MaxiFil Clean Extraction System
The MaxiFil Clean is more than just a smoke extraction system, it’s a long-term investment in workplace safety, efficiency, and compliance. By helping businesses stay ahead of safety regulations, it provides assurance that operations meet the latest occupational health requirements. Beyond compliance, the system contributes to stronger employee retention and productivity by maintaining a healthier, cleaner work environment. Its versatility allows it to perform equally well in high-volume production facilities and small workshops, providing the flexibility modern businesses require.
MaxiFil Clean Spec Sheets
Get detailed product specifications in the MaxiFil Clean spec sheets available below:
Available Product Accessories:
- Automatic start-stop
- The Hood Pro
- Protective mesh
