Product offerings

---

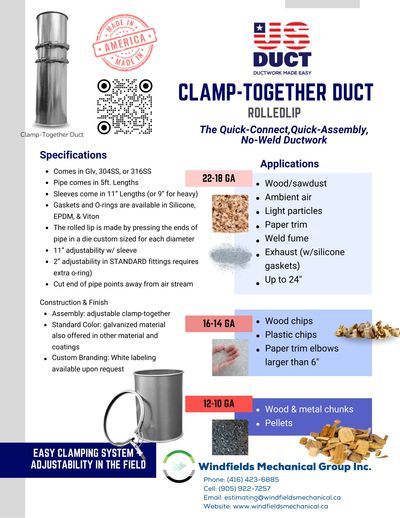

Our Laser-Welded Clamp-Together Ducting (CTD) uses a gasketed, over-center clamp that seals the rolled lip on the end of ALL clamp-fitting ductwork components.

At US Duct, we know more about Clamp-Together Ductwork than anyone. We provide ALL components and special fittings. The system is infinitely adjustable, with adjustment capability built into EVERY fitting.

While Clamp-Together Duct is usually the fastest, easiest, and cheapest way to address dust/mist collection, it is often best used in conjunction with other connection methods as dictated by the application or duct size. Our extensive knowledge will enable you to get the best solution for the application AND the money.

We manufacture flanged ductwork from 3" to 40" and beyond.

We also provide duct with flanges (also called angle rings or angle flanges) in black iron, galvanized, or stainless steel (SS) and with or without holes.

The duct to which these flanges are attached is available in sizes 3" and up, and also in black iron, galvanized or stainless steel.

US Tubing is a laser-welded, airtight duct in a clamp connection style. Using a Vanstone edge and a fully encompassing gasket, this version of clamp connecting ducting provides a superior, leak-free seal.

The components (pipes, branches, elbows, etc.) are standard 20-gauge metal (galvanized, stainless steel, or painted) with a range of 22 to 16 gauge available upon request. The pipe comes in standard 59" lengths which can be easily clamp-connected together to produce long runs.

Applications:

• Food & Beverage Processing
• Machining
• Pharmaceutical and Biotechnology
• Wastewater Management
• Chemical Processing
• Agricultural and Irrigation Systems
• Automotive and Aerospace
• & more!

The US Tubing clamp-together ducting system uses an adjustable clamp to compress a gasket between two perfectly flat pipe ends to produce an extremely tight seal. The system was designed specifically for coolant mist systems and is guaranteed not to leak. If any part does leak, the company will, at its discretion, repair or replace it within five working days at no charge.

Looking for dry applications? Check out our infinitely adjustable Clamp-Together Duct. We provide ALL components and special fittings.
